Morgo and SRM Oil Pumps

We have many other oil pumps and spares available. Please see our catalogue.
Please also see Morgo Cylinder Barrels

SRM Oil Pumps

As official SRM agents we can offer the full range of SRM performance parts.

68-0941 SRM High Delivery Oil Pump for BSA A50/A65

42-0115 SRM High Delivery Oil Pump for BSA A7/A10

Morgo Oil Pumps

The Morgo Unit high performance plunger pump is made to very fine limits from the best materials to give long and trouble free service and a 20% increase in performance over the standard oil pump. No modifications are needed just take off the old pump and fit the new. The unit pumps can be fitted to all twin cylinder unit construction motors.

Part Number	Description	Model
70-6928M	Oil Pump Assembly	Unit 350/500/650 Models
70-3072M	Oil Pump Assembly	Pre Unit 500/650 Models

Morgo Rotary Oil Pumps

Morgo Rotary Oil Pump, Pre Unit Triumph

Part Number	Description	Model
70-3072RM	Rotary Oil Pump	Pre Unit 500/650
70-6928RM	Rotary Oil Pump	Unit 350/500/650

Triumph Tiger Cub Plunger Oil Pump

Replaces 70-3189, 70-4208, 70-4402

The Morgo Tiger Cub plunger pump is made to very fine limits from the best materials to give long and trouble free service and an increase in performance over the standard oil pump.

No modifications are needed just take off the old pump and fit the new.

Part Number	Description	Model
70-3393M	Morgo Plunger Oil Pump Assembly	Triumph T15/T20 1953-65

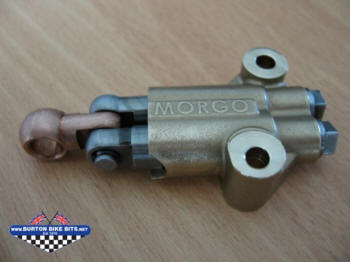

Triumph Tiger Cub Plunger Oil Pump (Sliding Block Type)

The Morgo Tiger Cub plunger pump is made to very fine limits from the best materials to give long and trouble free service and an increase in performance over the standard oil pump.

No modifications are needed just take off the old pump and fit the new. Supplied with slider block, gasket and secondary balls and springs.

This pump can be fitted to all late type Tiger Cub motors, Replaces 70-7291

Part Number	Description	Model
70-6486M	Morgo Oil Pump Ass, Sliding Block Type	Late Cub, 1965 on

Other Oil Pumps

Part Number	Description	Model	Photo
40-0303	Oil Pump, Complete Genuine New Old Stock	BSA C15/B40 1959-60
41-0801	2 Stud Zinc Alloy Oil Pump Genuine New Old Stock	BSA B44/WDB40 1967
41-0133	Oil Pump, Complete Genuine New Old Stock	BSA C15/B40 1961-65
68-0310	Oil pump worm drive, R/C Type	BSA A65
70-2354 E2354	Oil Pump Ass, Genuine New Old Stock	Triumph TRW

Wet Sumping?

Wet sumping can occur on all oil tank models (most BSA and Norton) with geared oil pumps. When left standing for a period of time the oil can drain from the tank through the engine and then through worn gears on the oil pump to the sump. Consequently when the engine is started the oil is burnt off causing smoke.

This can be remedied by a new oil pump. However before anything, first check the non-return valve spring and ball for wear. Many oil pumps will be the original units and wet sumping is often a sign that a replacement is due.
