Rear Shocks (Suspension Units)

We have a wide range of Hagon and Girling rear shocks and suspension units available

Girling Suspension Units History

The well known oil filled Girling shocks were commonly used on most British motorcycles. They were later replaced by Gas Filled Shocks. The Girling factory was on King's Road, Birmingham.

Burton Bike Bits carry some Genuine Girling Suspension Units and Springs.

Girling Replicas

11.4" Girling Replicas

BSA Bantam Rear Shocks

Part Number Description Model/Year
19-7417 Shrouded Rear Shocks
Non Adjustable
3/8" Top Bush
1/2" Bottom Bush
BSA Bantam
D7/D10/D14 1958 on
Can Replace
SC3/204
Shrouded Rear Shocks
Non Adjustable
3/8" Top Bush
1/2" Bottom Bush
Triumph Tiger T20



     As Original 13.4"







Part Number Description Model/Year
68-4224 Shrouded A50/A65/'62 '63
19-7418 Shrouded A50/A65/'64-'68
19-7438 Chrome spring + Top Covers, Genuine Girling Springs A65L/S/1968
19-7440 Chrome Spring only, Genuine Girling Springs A65F/1968
19-7448 Chrome Spring only, Genuine Girling Springs A65/1969-70

11.9" Girling Replica

Part Number Description Model/Year
GR64053946 Covered in, complete with Chrome Springs (132lb) Triumph 3TA/5TA/T100A 1959-67
GR/650539116N Covered in, complete with Genuine Girling Chrome Springs (64543764, 132lbs) Royal Enfield Interceptor MK1 1964-66
W49557A Covered in, complete with Genuine Girling Chrome Springs (64543764, 132lbs) Royal Enfield Interceptor MK1A/MK2
W49558A Chrome Spring, complete with Genuine Girling Chrome Springs (64543764, 132lbs) Royal Enfield Interceptor MK1A, GT90
06-7865
NM24036
Covered in, Shrouded(110lbs) Norton Slimline Models 1960on
(Dommie 88/99, 650SS, Atlas)
60096 Fully Shrouded, 3/8 " Bushes
(110lbs)
Ariel Heavy Weight (1952-59)
60097 Fully Shrouded, 3/8 " Bushes
(90lbs)
Francis Barnett/Greeves etc.



12.2" Girling Replica

p/n 02-4180, Fully shrouded with 110lbs spring rate, length 12.2", complete with bottom alloy yoke & polished alloy collets.

Available for AJS, Matchless



















12.9" Shrouded Type

Available for AJS, Matchless (1965 on, G3, G80, G12, G15)

Fitted with 110lb spring and 3/8" bushes top and bottom.







12.9" Shrouded Type

Available for the following Models:

BSA -         B31, B32, B33 , B44, A7, A10
Norton-
88, 99, Model 50, ES2, All Widelines Pre 1960
Triumph-   Pre-Unit 6T, T120, TR6, Unit T100, T120









13.2" Shrouded Type

Velocette - MSS, Viper, Venom, Clubman, Endurance (MAS33/6)









Woodhead Replicas - Woodhead Suspension units were originally manufactured by Jonas-Woodhead and Sons ltd, Leeds. We supply replicas of the original.

MSS, Viper, Venom, Clubman, Endurance (MAS33/4) c/w top bushes







Genuine Girling Suspension Springs
This Is Just A Small Selection Of Our Stock!

Part Number Models
GR9054/58 James K7/ C / T / K12 / L25T /S Matchless G2 / Ariel
BSA C15 / B40
GR9054/59 BSA CB / DBD / Ariel
GR64543626 B50MX / TR5W
GR64545350 A6501F '71
GR64543735 A50 / A65
GR64543764 Yamaha XS1 / XS2
T100 '60-68
GR64541788 RE250



Hagon Shock Absorbers

Hagon Shock Absorbers History

Hagon Products was created in 1958 by ex-British Grasstrack Champion Alf Hagon. The company produced competition frames.

Hagon Shocks can be used to replace the original Girling Shocks.

Hagon Suspension units feature Progressive action springs (except 30kg/cm & above), conventional stepped spring adjuster cam-ring. Double sealed nitrogen cell, Automatic compression & rebound damping control.

Supplied in complete pairs with adjusting spanner.

Guaranteed for 2 years.





Available - 11.4", 11.9", 12.4", 12.9", 13.4" Chrome Open Spring Type

BSA-        C15, B40, B25, B44, B50, A50, A65, A70
Norton-   Dommie, Atlas, Commando's
Royal Enfield - 250cc, 350cc, 500cc, 700cc, 750cc
Triumph- Late T20's, 3TA, 5TA, T100, TR5T, T120, TR6, 6T, T140,TR7, T150,T160, X75





Shroud Set (Girling Type)

Shroud Set (Hagon Type)

Triumph Bonneville Shock Absorbers (Hinckley)

Hagon Classic Shocks

Can be fitted to all Bonneville models (Note differences in US spec bikes and 2009/10)

Get the Classic look whilst improving ride and handling! 3 Way Adjustment. We can offer various styles, black open spring, chrome spring or shrouded black or chrome.

Part # Description Model
34008 Classic Style Hagon Shock absorbers
340mm
Bonneville Models 2000 - 2008
32051 Classic Style Hagon Shock absorbers
320mm
Bonneville Models 2000 - 2008 (USA Spec)
33008 Classic Style Hagon Shock absorbers
330mm
Bonneville Models 2009/10



Plungers

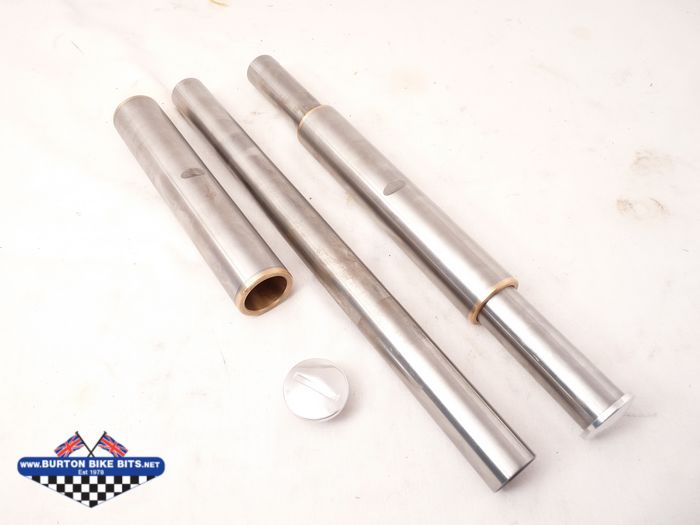

89-4041/6 Plunger Carrier Column Ass for BSA

Part Number Description Model/Year
89-4041
89-4046
Plunger Carrier Column c/w tube and bush and 67-4166 Top Plug BSA A7/A10/B31
B32/B33/B34...
